What Is Industrial Immersion Heater Mounting And Why Does It Matter?
Industrial immersion heater mounting is a critical consideration in process industries, as it directly affects efficiency, safety, and maintenance ease. According to the International Energy Agency, industrial heating accounts for more than 50% of total global industrial energy consumption. A significant portion of this energy is delivered through immersion heaters installed in tanks, vessels, and process lines. The mounting style—flanged or threaded screw-plug—determines how well the heater integrates with your system, influences process reliability, and impacts long-term operational costs.
Choosing the right configuration is not just about fitting a heater into a tank; it’s about maximizing uptime, minimizing leaks, and ensuring optimal heat transfer for your specific application. With a legacy in precision manufacturing, Heatcon Sensors provides not only world-class temperature sensors like customized RTDs and thermocouples, but also expertly engineered heat generating equipment such as furnaces, ovens, hot air blowers, electric furnaces, and high density cartridge heaters. Our solutions are trusted by industries across India, the US, UAE, Indonesia, Germany, South Korea, Saudi Arabia, Russia, Bahrain, Kuwait, and beyond.

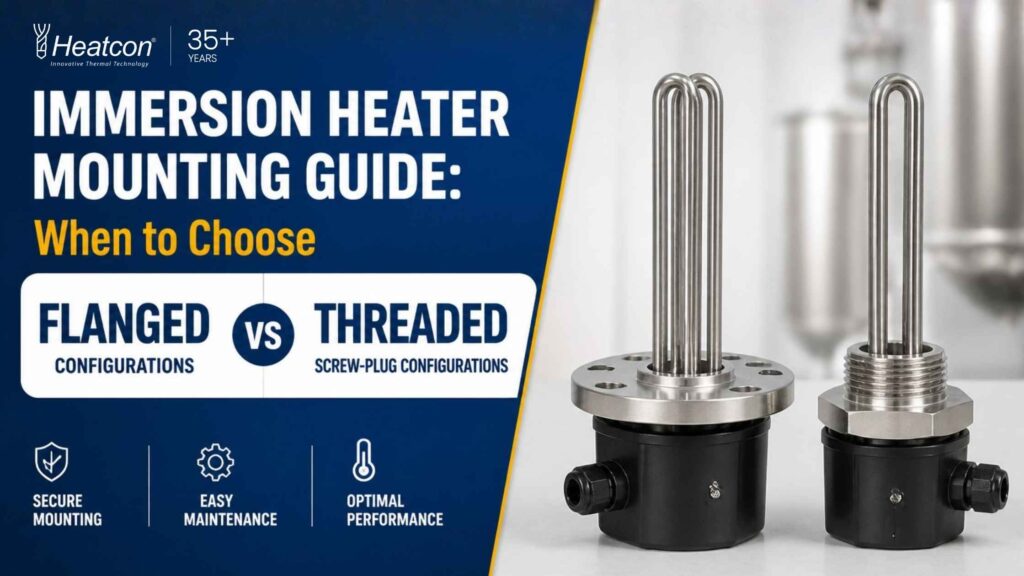

How Do Flanged Tank Heating Elements Differ From Threaded Immersion Heaters?
Flanged tank heating elements and threaded immersion heaters are the two most common mounting styles used for industrial liquid heating. Both have their strengths, but their suitability depends on process requirements, tank construction, and maintenance expectations.
- Flanged tank heating elements are installed using a bolted flange, typically ANSI or DIN standard, allowing for robust, leak-tight connections on large tanks and high-pressure vessels.
- Threaded immersion heaters (or screw-plug heaters) are fitted through a threaded opening, usually NPT or BSP, and are ideal for smaller tanks or applications where rapid replacement is necessary.
Heatcon Sensors can custom design either option for your site, ensuring compatibility with your tank’s dimensions, material, and process parameters.
When Should You Use Flanged Tank Heating Elements?
Flanged tank heating elements are the preferred choice for large-scale industrial liquid heating operations. They are engineered for durability, high power ratings, and ease of maintenance in demanding environments.
- High tank volumes: Flanged elements can accommodate multiple heater bundles, delivering higher wattages to heat thousands of liters efficiently.
- High pressure or temperature: The immersion heater flange provides a secure, gasketed seal, minimizing leak risk in pressurized or high-temperature vessels.
- Critical process tanks: In chemical tank liquid heater applications, flanged mounting ensures integrity even with aggressive or hazardous media.
- Frequent servicing: Flanged heaters can be removed for cleaning or replacement without draining the entire tank, minimizing downtime.
For industries such as pharmaceuticals, petrochemicals, food processing, and power generation, flanged solutions from Heatcon Sensors guarantee reliability and compliance with global standards.
What Are The Benefits Of Threaded Immersion Heater Mounting?
Threaded immersion heater mounting, also called screw-plug immersion heater sizing, is popular for smaller tanks, on-site process vessels, and rapid-change applications.
- Compact footprint: Threaded designs fit neatly into smaller tanks and side-entry locations.
- Easy installation: Simply screw the heater into a tapped port—no welding or bolting required.
- Fast replacement: Heaters can be swapped out quickly to minimize process interruptions.
- Cost-effective: Lower initial investment for non-critical applications or pilot plants.
Heatcon Sensors offers threaded immersion heaters in multiple wattages and thread standards, customized to your tank or vessel, ensuring safe and efficient operation in every environment.
How To Make The Right Immersion Heater Selection For Your Application?
Immersion heater selection involves evaluating your process needs, liquid type, tank size, operating conditions, and maintenance preferences. Here’s a practical way to decide:
| Factor | Flanged Tank Heating Elements | Threaded Immersion Heater |
|---|---|---|
| Tank Size | Medium to very large | Small to medium |
| Pressure Rating | High (pressurized tanks) | Low to medium |
| Installation | Bolted flange, gasketed | Screw-in, thread seal |
| Maintenance | Easy bundle removal | Quick swap, but usually requires tank draining |
| Typical Applications | Industry, chemical tank liquid heater, critical process | Laboratories, pilot plants, portable tanks |
For expert guidance, Heatcon Sensors’ engineering team can assess your requirements and recommend the optimal solution for your tank heating elements—whether for an industrial immersion heater mounting project in India, Germany, or anywhere else in the world.
Why Is Proper Screw Plug Immersion Heater Sizing Critical?
Accurate screw plug immersion heater sizing ensures that your process fluid is heated safely and efficiently, without exceeding the liquid’s boiling point or risking overheating. Undersized heaters result in slow heat-up times, while oversized units may cause rapid scaling, stress on the tank, or even safety hazards.
- Identify the tank volume and type of liquid (water, oil, chemical, etc.).
- Determine the required temperature rise and process duty cycle.
- Account for heat losses from tank walls and insulation.
- Choose a watt density compatible with your liquid to avoid localized boiling.
Heatcon Sensors’ specialists create custom-engineered solutions for screw plug immersion heater sizing, ensuring high efficiency and longevity, even in corrosive or viscous media.
What Are The Key Factors For Chemical Tank Liquid Heater Selection?
The performance and longevity of a chemical tank liquid heater depend on both the mounting method and the choice of materials. Chemical compatibility, temperature uniformity, and safety are paramount.
- Material selection: Stainless steel, Incoloy, titanium, or Teflon coatings for corrosion resistance.
- Mounting style: Flanged designs preferred for aggressive or hazardous chemicals.
- Thermal control: Integration with RTDs, thermocouples, or thermostats for precise heating.
- Certifications: Compliance with local and international safety standards.
Heatcon Sensors offers complete chemical tank liquid heater assemblies, including sensor integration for real-time monitoring and safety shut-off, shipped to any required city or country.
How Do Immersion Heater Flange And Threaded Designs Impact Maintenance?
Immersion heater flange models allow straightforward removal for inspection and cleaning, especially valuable in industrial settings with large tanks or when dealing with scaling liquids. Threaded immersion heater units, while easy to replace, may require tank draining unless installed in a side-access port above the liquid level.
- Flanged heaters: Best for plants prioritizing uptime and minimal maintenance-related downtime.
- Threaded heaters: Advantageous for applications with limited space or lower maintenance frequency.
Heatcon Sensors delivers both styles, with custom sealing solutions and advanced sensor integration, tailored to your process and maintenance routines.
What Is The Role Of Tank Heating Elements In Industrial Liquid Heating?
Tank heating elements are the backbone of industrial liquid heating, ensuring uniform temperature for processes such as mixing, storage, chemical reaction, and cleaning. The correct mounting and element design prevent cold spots and energy waste, maximizing process quality.
Heatcon Sensors’ expertise in both flanged and threaded immersion heater solutions lets you achieve precise thermal control for water, oils, solvents, acids, and more, enhancing production output and product consistency.
How Can Heatcon Sensors Support Your Industrial Heating Projects Globally?
Whether you operate from Mumbai, Riyadh, Berlin, Seoul, Jakarta, or New York, Heatcon Sensors stands ready to deliver expertly engineered heating and sensing solutions. Our manufacturing capabilities extend beyond immersion heaters to include:
- Customized RTDs and thermocouples for all process environments
- High density cartridge heaters for localized, high-wattage heating
- Ovens, electric furnaces, and hot air blowers for a wide array of industrial operations
- Comprehensive control panels and automation for turnkey solutions
With the ability to custom manufacture and ship to any part of India, the US, UAE, Indonesia, Germany, South Korea, Saudi Arabia, Russia, Bahrain, Kuwait, and worldwide, Heatcon Sensors is your global partner for precise temperature control and industrial process heating.
How To Contact Heatcon Sensors For Immediate Assistance?
Don’t let inefficient heating or costly downtime hold your operation back. Connect with Heatcon Sensors’ experts today to discuss your industrial immersion heater mounting needs or custom sensor requirements. You can reach us through any of these convenient options:
- Submit your information on the form at https://heatconsensors.com/contact-us/
- Leave a message on Whatsapp via the interface available on our website
- Call us directly at +91 9164833027 or +91 9844233244 for immediate support
Experience the difference that precision engineering, global reach, and industry expertise bring to your next project.
About Heatcon Sensors
Heatcon Sensors is a leading manufacturer of customized RTDs, thermocouples, and industrial heating equipment based in India, serving clients worldwide. Specializing in the design, manufacturing, and supply of temperature sensors and heat generating solutions, Heatcon Sensors is recognized for quality, reliability, and innovation in the fields of industrial immersion heater mounting, tank heating, and process automation. Trusted by industry leaders across sectors, Heatcon Sensors is your partner for advanced thermal solutions, wherever your operations are located.
Frequently Asked Questions
What are the main differences between flanged and threaded immersion heater mounting?
Flanged immersion heater mounting uses a flat, bolted plate (the immersion heater flange) to attach the heater to the tank, providing robust sealing and easy serviceability. Threaded immersion heater mounting, on the other hand, uses a screw plug thread for direct screwing into a corresponding tank coupling. Flanged tank heating elements are ideal for larger, high-pressure applications, while threaded immersion heater designs are typically used for small-to-medium tanks where quick installation is preferred.
When should I select flanged tank heating elements over screw plug heaters?
Flanged tank heating elements are best suited for industrial immersion heater mounting in larger tanks, especially where high power, easy maintenance, or chemical resistance is required. If your application involves chemical tank liquid heater requirements, frequent removal for cleaning, or higher pressure containment, a flanged configuration is recommended. Heatcon Sensors offers a wide range of immersion heater flange options tailored to these demanding environments.
What are the key considerations for screw plug immersion heater sizing?
Screw plug immersion heater sizing depends on factors such as tank volume, liquid type, required temperature rise, watt density, and available power supply. Ensuring the correct thread size and material compatibility is also crucial for safe and efficient operation. Heatcon Sensors assists with screw plug immersion heater sizing by evaluating your process needs and recommending the right threaded immersion heater configuration for your tank heating elements.
Are there specific applications where threaded immersion heaters are preferred?
Threaded immersion heater designs are ideal for small to medium tanks, low to moderate power needs, and applications where space is limited or tanks have pre-existing threaded ports. They are commonly used for industrial liquid heating in process tanks, oil baths, and water heating systems. Heatcon Sensors provides expertly engineered threaded immersion heater solutions to ensure reliable, cost-effective performance in these scenarios.
How do I ensure compatibility with chemical tank liquid heater requirements?
For chemical tank liquid heater applications, material compatibility is critical to prevent corrosion and ensure long service life. Selecting the appropriate sheath material (such as Incoloy, stainless steel, or titanium) and mounting configuration is key. Heatcon Sensors specializes in providing flanged and threaded mounting options with a variety of corrosion-resistant materials tailored for aggressive chemical environments.
Can Heatcon Sensors help with immersion heater selection for custom tanks?
Absolutely. Heatcon Sensors offers expert support for immersion heater selection based on your tank size, medium, temperature targets, and process conditions. Whether you need a custom immersion heater flange, a particular screw plug size, or specialized tank heating elements, our team will help you choose the best configuration for your unique industrial process.
What maintenance advantages do flanged heaters offer over threaded types?
Flanged heaters are easier to remove and service, especially in larger tanks or when frequent maintenance is required. The bolted flange allows for quick disconnection without disturbing piping or wiring, which is particularly beneficial for industrial immersion heater mounting in critical process areas. Heatcon Sensors’ flanged designs are engineered for easy access, reducing downtime during maintenance.
How does Heatcon Sensors ensure safety and reliability in immersion heater solutions?
Heatcon Sensors prioritizes safety and reliability in all tank heating elements by using high-quality materials, precision engineering, and rigorous testing. Our heaters are designed for industrial liquid heating applications, meeting relevant electrical and process safety standards. We also offer options such as thermostats, thermal cut-outs, and custom mounting to maximize operational safety.
What should I consider when upgrading or replacing immersion heaters in existing tanks?
When upgrading immersion heaters, check existing tank openings (flange or thread size), power requirements, medium compatibility, and space constraints. Heatcon Sensors can assist with both immersion heater flange retrofits and custom threaded immersion heater replacements to ensure seamless integration with your process tank. Proper immersion heater selection is essential for performance, safety, and longevity.
