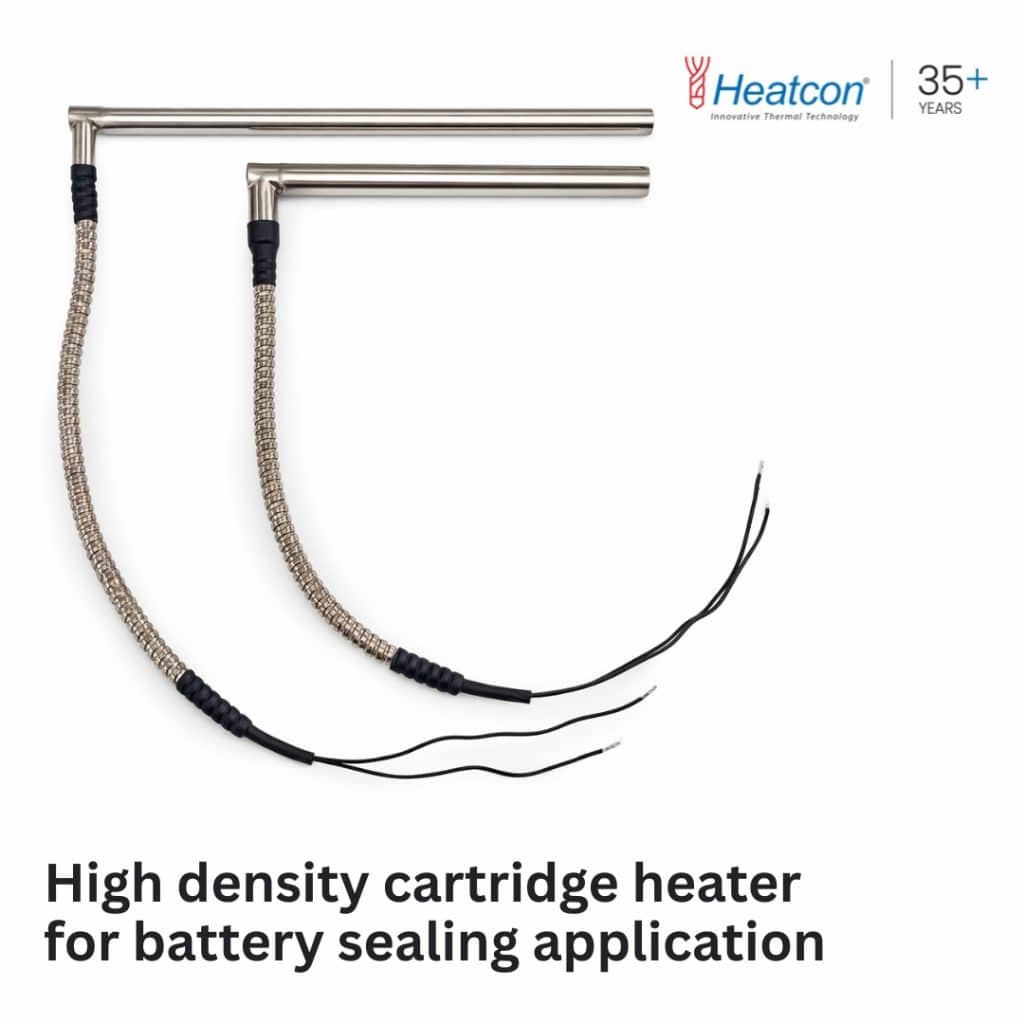

High Density Cartridge Heaters

High Density Cartridge Heaters

High density cartridge heaters are the ones that are quite similar to the regular cartridge heaters, but with a slight difference that they have a much higher wattage output per unit area. This means such heaters have the capability to generate more heat in a smaller space, which makes them ideal for those industrial applications wherein the usage space is very limited. So, we can say that high-density cartridge heaters are designed in such a way that they provide a higher wattage output per unit area compared to standard cartridge heaters. This makes them suitable for applications where a more intense heat source is required in a limited space, such as in hot runner systems for plastic injection moulding etc.

Special Features:



  • OUTER SHEATH: SS 304/INCOLY/INCONEL 600/SS 310/SS 321/SS316/BRASS
  • RESISTANCE WIRE:- NICHROME 80/20
  • PINS: 100 6 PURE NICKEL
  • INSULATION: MGO
  • SEALING: CEMENT/SILICON/TEFLON.
  • LEAD WIRES: TEFLON/SS BRAIDED/FIBERGLASS INSULATED.

Cartridge heater compacted by magnesium oxide offers high performance. With a maximum rating of Wattage up to 70 Watts/Square inch & Temperature up to 750°C on the sheath of the heater. Power distribution & Inbuilt Thermocouple options are available.



Features:



  • Standard Diameters 6.5,8,9.5,10,12.5,16,19.20,22,25mm.
  • Tolerance in Diameter: ±0.05mm.
  • Length: 30mm-1500mm.
  • Tolerance in Length: ±1.5%
  • Min Max Voltage: 480V.
  • Wattage Tolerance ±10%.

Application:



  • Liquid Immersion.
  • Plastic Molds
  • Dies
  • Labeling
  • Medical Equipment
  • Packaging Equipment
  • Hot Stamping.
  • Sealing
  • Injection Molding
  • Hot Runner
